How to add the Corneta overlay as an OBS Browser Source

Open Chat → Set up → Overlays, turn the feature on and use Add to OBS. Corneta creates a local Browser Source for chat or alerts, without sending the feed to an external server.

Published
Reading time
1 min read
Corneta version
0.11.0
Tested with
Corneta 0.6.0 (Windows 11), OBS Studio 32.x (Windows 11)

Turn on the overlay

Applies to the installed app; the browser demo mode doesn't open the local server.

  1. Open Chat → Set up → Overlays.
  2. Turn on Overlays for OBS.
  3. Under Alerts or Chat, click Add to OBS.
  4. In OBS, confirm the new Browser Source in the current scene.
  5. Position and resize the source.
  6. Go back to Corneta and use the test button.

Enlarge image

Fit

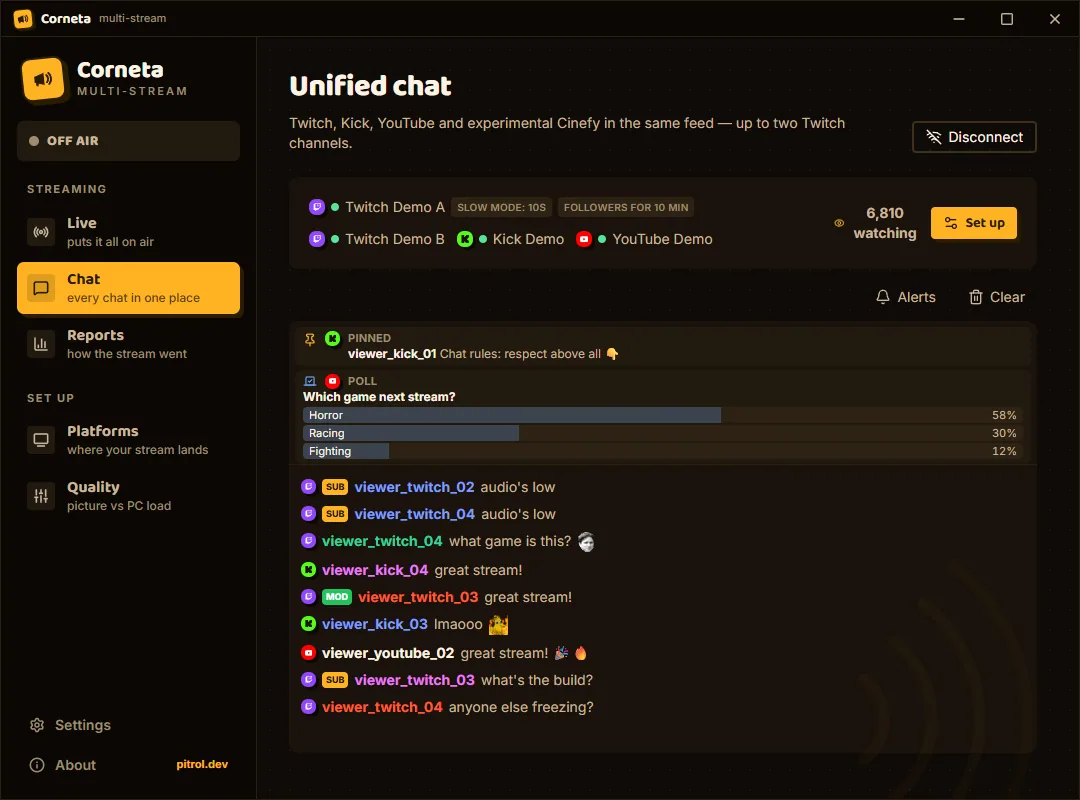

Chat screen connected to Twitch, YouTube and Kick before setting up the overlay.

The overlay uses the same connected feed; first confirm where the messages come from in the private panel.

The overlay uses the same connected feed; first confirm where the messages come from in the private panel.Source: CornetaCorneta version: 0.11.0

Adjust before the stream

For alerts, set position, scale, duration, sound and followers. For chat, adjust font size, maximum messages, badges, platform icon, commands and the time before messages fade out.

The URL uses loopback and the configured local port. Don't swap it for a public IP or open the port on your router.

If it doesn't show up

SymptomHow to confirmFix
source doesn't exist in OBSlook in the current sceneclick Add to OBS again
empty framesend a test from Cornetarefresh the Browser Source cache
URL doesn't opencheck that the overlay is onturn it off and on again, and check the port
no soundtest audio monitoring in OBSturn on sound and the source's audio properties

If it still fails, write down the port and the message. Don't share your alert sources' tokens.
